VUV to UV Optical Wedged Windows



Vacuum Ultraviolet to UV (VUV-UV) Optical Wedged Windows are available from select VUV Grade Magnesium Fluoride (MgF2); Calcium Fluoride (CaF2), Sapphire & UV Grade Fused Silica with a Wedge angle of 30 arc minutes in both 0.5" & 1.0" Diameter sizes.  The 30 minute wedge angle minimizes interference effects between surfaces.  The Reflected VUV-UV beams from both surfaces are separately usable in VUV through UV Laser applications.





Magnesium Fluoride:  VUV Grade Magnesium Fluoride (MgF2) exhibits high transmission properties from ~ 110nm Vacuum UV (VUV) to ~ 6.0um in the Infrared.  MgF2 is a relatively hard crystalline material resistant to mechanical and thermal shock.  MgF2 is a birefringent crystal typically oriented along the optical axis to avoid birefringent effects in optical windows & lenses.  MgF2 Axis Orientation is within +/- 5 degrees.

Calcium Fluoride:  Calcium Fluoride (CaF2) exhibits good transmission properties from ~ 140nm Vacuum UV (VUV) to ~ 8.0um in the Infrared.  CaF2 is a relatively soft crystalline material and care should be taken as CaF2 is sensitive to mechanical and thermal shock.  CaF2 is a cubic single crystal optical material.

Sapphire:  Sapphire (Al2O3) exhibits good transmission range extending from the ~ 150nm Vacuum UV (VUV) to ~ 5.0um in the Infrared.  Sapphire is an exceptional hard material and can only be scratched by a few materials other than itself.  Sapphire is chemically inert and insoluble to water, common acids, or alkalis at temperatures up to ~1,000 °C. Sapphire is typically oriented so that the c-axis of the crystal is parallel with the optical axis.

UV Grade Fused Silica (UVFS):  Synthetic form of silicon dioxide made from SiCl4  ,which transmits light over a very broad range of wavelengths from ~ 170 nm to 2.5 µm.  UV Grade Fused Silica is a high-purity material which has excellent thermal stability, high transmittance and is used as a UV to NIR material for many optical components.

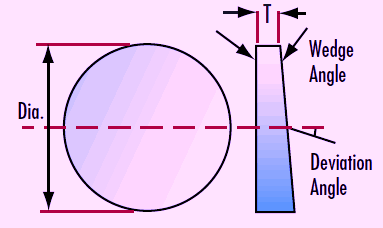

WEDGED WINDOW SPECIFICATIONS

Material: VUV Grade MgF2CaF2Sapphire & UVFS
Diameter (Dia = Ø) Tolerance: ± 0.2mm
Thickness Tolerance: ± 0.4mm
Transmitted Wavefront:  ~L/8 - L/10 @ 633 nm nominal
Sapphire: ~ 1/2-1 wave @ 633 nm nominal
Surface Finish:  10-5 to 20-10 both surfaces
Sapphire: 60-40 both surfaces
Clear Aperture: central 80%
Wedge Angle: 30+/- 10 arc minutes
Chamfer: ~ 0.30mm @ 45 deg. typical
MgF2 Axis Orientation: +/- 1-2 Degrees typical

(All dimensions in mm)









DIAMETER Ø

THICK (T)

             DESCRIPTION

 MATERIAL

 PRODUCT #

 PRICE

ORDER

12.7mm

3.0mm

VUV to UV MgF2 Optical Wedged Window

VUV MgF2

AQMF1230WW

$295.00

AQMF1230WW

25.4mm

5.0mm

VUV to UV MgF2 Optical Wedged Window

VUV MgF2

AQMF2550WW

$375.00

AQMF2550WW

12.7mm

3.0mm

VUV to UV CaF2 Optical Wedged Window

UV CaF2

AQCF1230WW

$205.00

AQCF1230WW

25.4mm

5.0mm

VUV to UV CaF2 Optical Wedged Window

UV CaF2

AQCF2550WW

$245.00

AQCF2550WW

12.7mm 3.0mm VUV to UV Sapphire Optical Wedged Window Sapphire AQSP1230WW $190.00 AQSP1230WW

25.4mm

5.0mm

VUV to UV Sapphire Optical Wedged Window

Sapphire

AQSP2550WW

$235.00

AQSP2550WW

12.7mm

3.0mm

VUV to UV UVFS Optical Wedged Window

UVFS

AQF1230WW

$215.00

AQF1230WW

25.4mm

5.0mm

VUV to UV UVFS Optical Wedged Window

UVFS

AQF2550WW

$255.00

AQF2550WW

38.1mm

4.0mm

VUV to UV UVFS Optical Wedged Window

UVFS

AQF3840WW

$305.00

AQF3840WW



**Also see our VUV & UV Grade MgF2, CaF2, Sapphire, Fused Silica & BK7 Glass Circular Optical Windows & VUV-UV Optical Windows


VUV to UV Optical Wedged Windows are 30 minute wedge angle polished round VUV-UV optical windows typically used in general VUV through UV applications such as Deuterium (D2) Lamp and VUV-UV Laser Sources to isolate environments while allowing short wavelength VUV through UV light to transmit as short as 120nm.   VUV to UV Wedged Windows are generally used to eliminate fringe patterns and to help avoid cavity feedback. VUV to UV Wedged Windows are useful for protecting a laser output from environmental effects and for beam sampling applications. and or protecting other components within an VUV to UV optical assembly, VUV to UV instrument or VUV to UV laser.

More information can be found on our Material Properties Page.   For more information about Optical Windows, refer to our Optics Tutorial page.
