Circular Optical Windows
38.1mm to 127.0mm Diameter


Circular Optical Windows are available as both Laser Quality and Analytical Quality polish designated as LQ (Laser Quality) and AQ (Analytical Quality).

Circular Optical Windows are available in UV Grade Fused Silica (FS) & BK7 Glass materials*. Circular Optical Windows are flat polished round optical windows typically used to isolate environments while allowing light to pass relatively unimpeded. Optical Windows are generally used for view ports or sealing and or protecting other components within an optical assembly, instrument or laser.


*Also see our VUV grade MgF2, & CaF2 Optical Windows for Vacuum UV (VUV) applications.

Also see our Square Optical Windows  with additional UV Grade Fused Silica & BK7 Glass Materials


-- eSource Optics also offers an Excess Inventory of custom Thickness Optical Windows....

Please visit our "Windows Sale" Link.


For more information about Optical Windows, refer to our Optics Tutorial page.

OPTICAL WINDOW SPECIFICATIONS

Material: N-BK7 Glass & UV Grade Fused Silica
Diameter (Dia = Ø) Tolerance: ±0.25mm
Thickness Tolerance: ±0.25mm
Surface Figure: LQ = L4 to L/10 @ 633 nm nominal
                            (depending on Thickness)

                            AQ = ~3-5 waves@ 633 nm nominal
Surface Finish: LQ = <=20-10 both surfaces
                            AQ = <=60-40 both surfaces
Clear Aperture: central 85%
Parallelism: LQ = < 5 arc minutes
                     AQ = < 15 arc minutes
Chamfer: ~ 0.30mm @45 deg.

(LQ = Laser Quality / AQ = Analytical Quality)

All dimensions in mm













DIAMETER Ø THICK (T)                  QUALITY MATERIAL PRODUCT # PRICE

ORDER

38.1 3.2 Analytical Quality Optical Window  BK7 AQB3832OW $90.00 AQB3832OW
38.1 4.0 Laser Quality Optical Window Fused Silica   LQF3840OW  $235.00 LQF3840OW
38.1 3.2 Analytical Quality Optical Window Fused Silica   AQF3832OW  $105.00 AQF3832OW
38.1 6.4 Analytical Quality Optical Window BK7 AQB3864OW $95.00 AQB3864OW
38.1 6.4 Laser Quality Optical Window Fused Silica LQF3864OW  $235.00 LQF3864OW
38.1 6.4 Analytical Quality Optical Window Fused Silica   AQF3864OW  $140.00 AQF3864OW
38.1 9.5 Analytical Quality Optical Window BK7 AQB3895OW $105.00 AQB3895OW
38.1 9.5 Analytical Quality Optical Window Fused Silica   AQF3895OW  $145.00 AQF3895OW
50.8 3.2 Analytical Quality Optical Window BK7 AQB5032OW $75.00 AQB5032OW
50.8 3.2 Analytical Quality Optical Window Fused Silica   AQF5032OW  $145.00 AQF5032OW
50.8 6.4 Laser Quality Optical Window BK7 LQB5064OW $225.00 LQB5064OW
50.8 6.4 Analytical Quality Optical Window BK7 AQB5064OW $115.00 AQB5064OW
50.8 6.4 Laser Quality Optical Window Fused Silica LQF5064OW  $265.00 LQF5064OW
50.8 6.4 Analytical Quality Optical Window Fused Silica   AQF5064OW  $160.00 AQF5064OW
50.8 9.5 Laser Quality Optical Window BK7 LQB5095OW  $225.00 LQB5095OW
50.8 9.5 Analytical Quality Optical Window BK7 AQB5095OW $125.00 AQB5095OW
50.8 9.5 Laser Quality Optical Window Fused Silica LQF5095OW  $180.00 LQF5095OW
50.8 9.5 Analytical Quality Optical Window Fused Silica   AQF5095OW  $175.00 AQF5095OW
50.8 12.7 Analytical Quality Optical Window BK7 AQB5013OW $135.00 AQB5013OW
50.8 12.7 Analytical Quality Optical Window Fused Silica   AQF5013OW $205.00 AQF5013OW
76.2 9.5 Analytical Quality Optical Window BK7 AQB7695OW $145.00 AQB7695OW
76.2 9.5 Analytical Quality Optical Window Fused Silica   AQF7695OW $295.00 AQF7695OW
76.2 12.7 Analytical Quality Optical Window BK7 AQB7613OW $160.00 AQB7613OW
76.2 12.7 Laser Quality Optical Window Fused Silica   LQF7613OW  $715.00 LQF7613OW
76.2 12.7 Analytical Quality Optical Window Fused Silica AQF7613OW $325.00  AQF7613OW
101.6 9.5 Analytical Quality Optical Window BK7 AQB10195OW  $185.00 AQB10195OW
101.6 9.5 Analytical Quality Optical Window Fused Silica   AQF10195OW  $495.00 AQF10195OW
101.6 12.7 Analytical Quality Optical Window BK7 AQB10113OW $195.00 AQB10113OW
101.6 12.7 Laser Quality Optical Window Fused Silica   LQF10113OW $850.00 LQF10113OW
101.6 12.7 Analytical Quality Optical Window Fused Silica   AQF10113OW $585.00 AQF10113OW
127.0 9.5 Analytical Quality Optical Window Fused Silica AQF12795OW $695.00 AQF12795OW
127.0 12.7 Analytical Quality Optical Window Fused Silica AQF12713OW $795.00 AQF12713OW

<<<< Back



· Larger standard "AQ" Optical Window sizes such as 127.0mm & 152.4mm Diameter are available by Request


· Also see our Square Optical Windows  with additional UV Fused Silica & BK7 Glass Optical Material Properties



-- eSource Optics also offers an Excess Inventory of custom Thickness Optical Windows....

Please visit our "Windows Sale" Link.

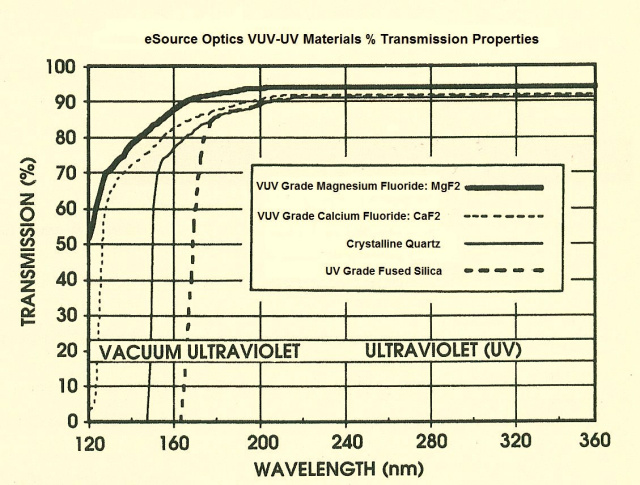

           eSource Optics other Optical Window & Lens materials include the following:
