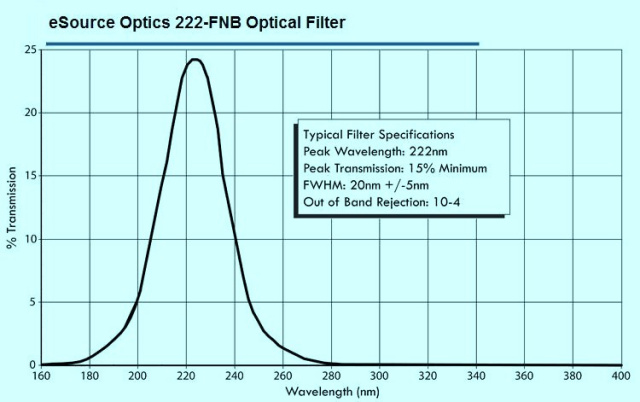

VUV-UV Narrowband Filter Curves

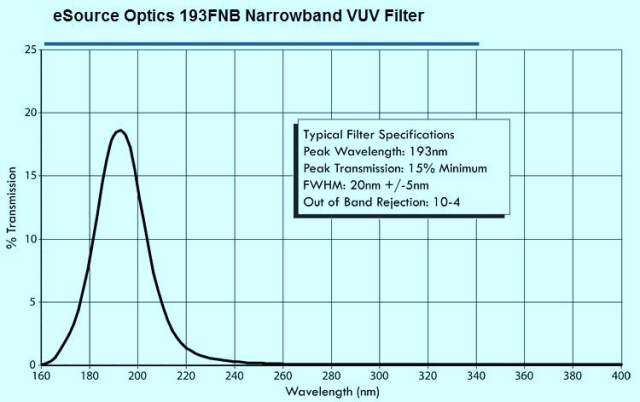

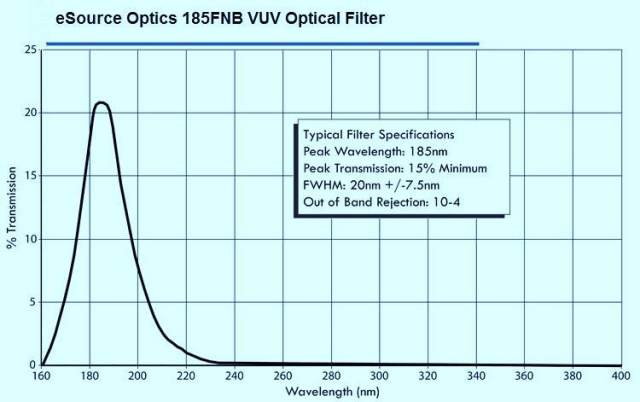

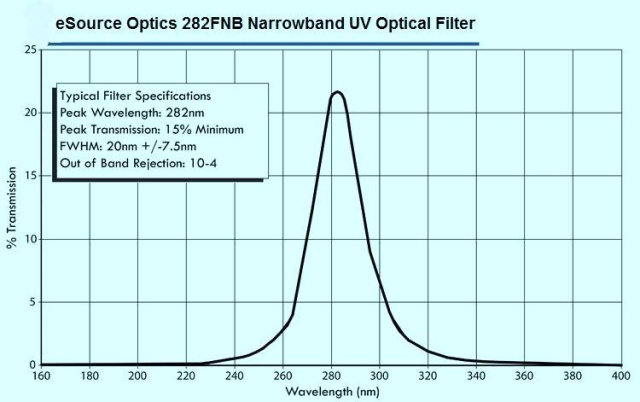

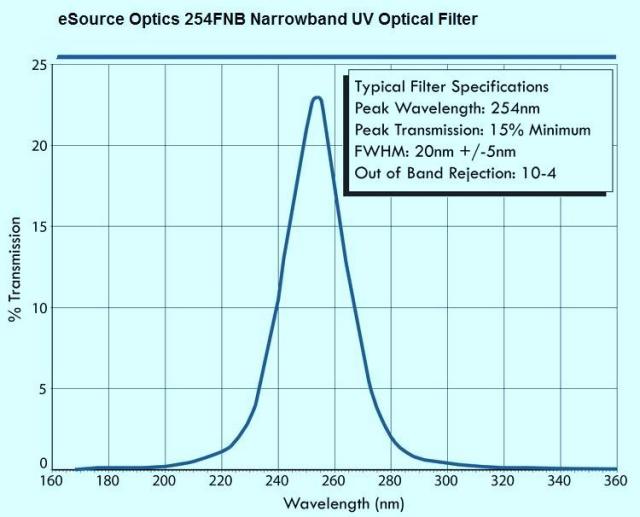

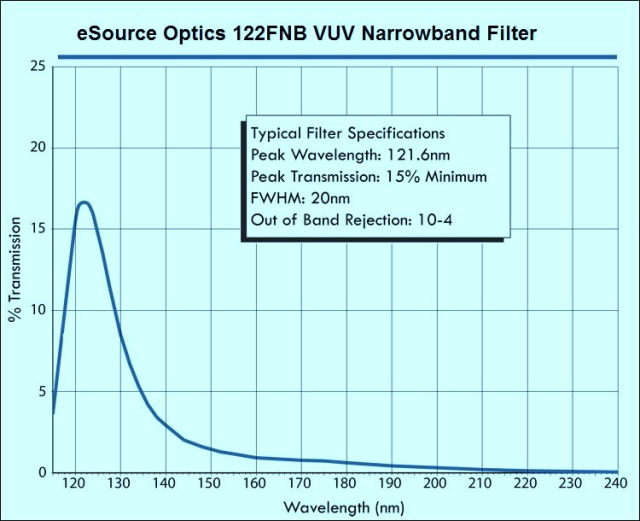

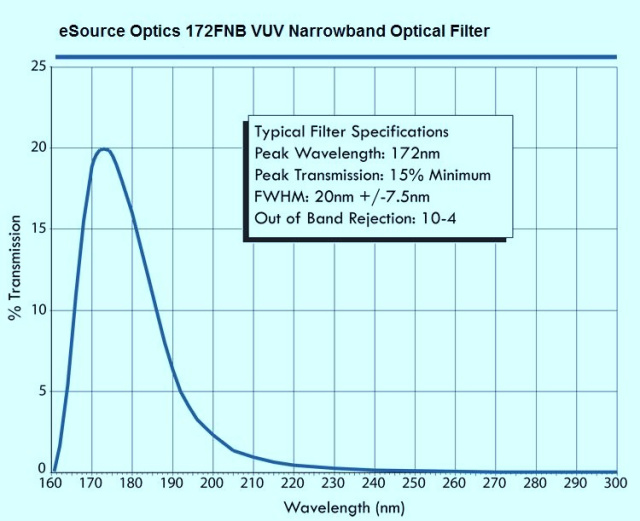

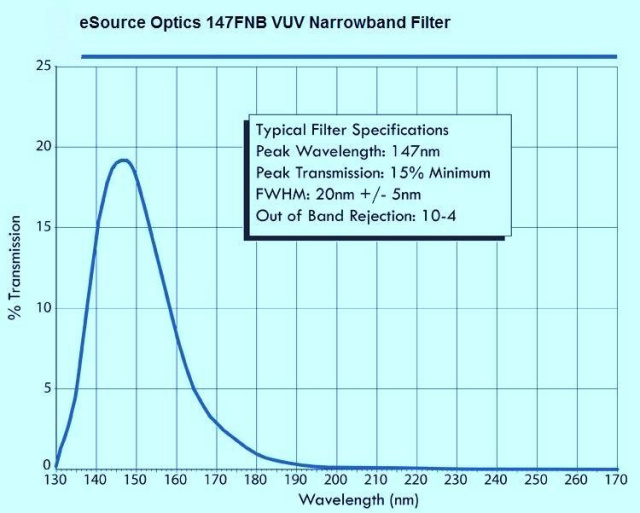

Typical % Transmission (Normal Incidence)

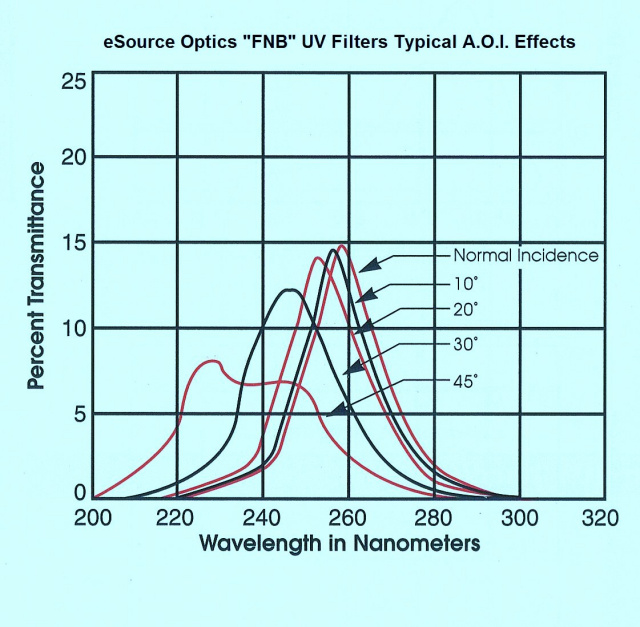

   VUV-UV Narrowband Filter Typical ANGLE OF INCIDENCE (A.O.I.) Effects







             VUV-UV Optical Filters & Mirrors/Windows/Lenses/Prisms/Optics Cases & Boxes
