UV Optical Bandpass Filters
220nm to 266nm

eSource Optics Ultraviolet  (UV) Optical Bandpass Filters are available at specific peak wavelengths over the UV wavelength range of 220nm to 320nm, within the UVC & UVB Short to Mid-wave Ultraviolet spectrum; including 222nm Filters for UVC sterilization.  Both Narrow & Broad Bandwidth UV Optical Bandpass Filters designs are available and designated as "FNB" having a 20nm FWHM, and "FBB" having a 35-50nm FWHM.

All UV Optical Bandpass Filters are available in standard 12.7mm, 25.4mm, and 50.8mm Diameters. UV Optical bandpass Filters are metal-dielectric-metal (MDM) design thin-film UV bandpass filters supplied as Unmounted and Open-Faced Filters.   Open-Faced UV Optical Bandpass Filters include a high purity UV grade Fused Silica substrate over-coated with the MDM filter coating. All UV bandpass filter substrates have a highly polished surface quality with less than ~5 arc minutes parallelism.  Very Narrow Bandwidth UV Optical Bandpass Filter designs are available at select UV wavelengths designated as "FVN" having a ~10nm FWHM in both a 25.0mm & 50.0mm Diameter size.  "FVN" Optical Filters are available at other wavelengths from 214nm to 313nm upon request.



UV OPTICAL FILTER SPECIFICATIONS


Substrate Material : UV Grade Fused Silica

Diameter (Ø) Tolerance: ± 0.25mm

Thickness: ~2.0-3.0mm (FNB Filters)

~1.5mm (FVN Filters)

Surface Quality: ~20-10 to 40-20 scratch-dig

(FNB); 80/50 scratch-dig (FVN)

Parallelism: ~ 5 arc minutes

Clear Aperture: Central 85%

Edge Chamfer: ~0.5mm x 45 degrees

Filter Blocking: Approx 10-3 to 10-4 short-
wave
VUV to long-wave UV to VIS typical


Construction: Unmounted and Open-Faced;

FNB & FBB can be covered (contact us)




Peak Wavelength (nm)

FWHM (nm)

Min. Peak Transmission

Diameter (mm)

Product #

Price

ORDER
220 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7 12220FNB $495.00 12220FNB
220 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25220FNB

$595.00

25220FNB

220 +/- 2.5 20 +/- 5 15% T UV Optical Bandpass Filter 50.8

50220FNB

$695.00

50220FNB

220 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 12.7

12220FBB

$495.00

12220FBB

220 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 25.4

25220FBB

$595.00

25220FBB

220 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 50.8

50220FBB

$695.00

50220FBB

222 +/- 2.5 KrCl 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7

12222FNB

$495.00

12222FNB

222 +/- 2.5 KrCl 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25222FNB

$595.00

25222FNB

222 +/- 2.5 KrCl 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50222FNB

$695.00

50222FNB

222 +3/-0 UVC Sterilization 10 +/- 2 12 % T UV Optical Bandpass Filter 25.0 25222FVN $595.00 25222FVN
222 +3/-0 UVC Sterilization 10 +/-2 12 % T UV Optical Bandpass Filter 50.0 50222FVN $735.00 50222FVN
230 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7

12230FNB

$495.00

12230FNB

230 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25230FNB

$595.00

25230FNB

230 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50230FNB

$695.00

50230FNB

230 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 12.7

12230FBB

$495.00

12230FBB

230 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 25.4

25230FBB

$595.00

25230FBB

230 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 50.8

50230FBB

$695.00

50230FBB

232 + 3/-0 10 +/- 2 15 % T UV Optical Bandpass Filter 25.0 25232FVN $595.00 25232FVN
232 + 3/-0 10 +/-2 15 % T UV Optical Bandpass Filter 50.0 50232FVN $735.00 50232FVN
240 +2/-1 10 +/-2 15 % T UV Optical Bandpass Filter 25.0 25240FVN $595.00 25240FVN
240 +2/-1 10 +/-2 15 % T UV Optical Bandpass Filter 50.0 50240FVN $735.00 50240FVN
240 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7

12240FNB

$495.00

12240FNB

240 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25240FNB

$595.00

25240FNB

240 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50240FNB

$695.00

50240FNB

240 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 12.7

12240FBB

$495.00

12240FBB

240 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 25.4

25240FBB

$595.00

25240FBB

240 +/- 5 35 +/- 10 30 % T UV Optical Bandpass Filter 50.8

50240FBB

$695.00

50240FBB

248 +/- 2.5 KrF Laser 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7

12248FNB

$495.00

12248FNB

248 + 3/-0 KrF Laser 10 +/- 2 12 % T UV Optical Bandpass Filter 25.0 25248FVN $595.00 25248FVN
248 + 3/-0 KrF Laser 10 +/- 2 12 % T UV Optical Bandpass Filter 50.0 50248FVN $735.00 50248FVN
248 +/- 2.5 KrF Laser 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25248FNB

$595.00

25248FNB

248 +/- 2.5 KrF Laser 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50248FNB

$695.00

50248FNB

250 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7

12250FNB

$495.00

12250FNB

250 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25250FNB

$595.00

25250FNB

250 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50250FNB

$695.00

50250FNB

250 +/- 2.5 40 +/- 10 30 % T UV Optical Bandpass Filter 12.7

12250FBB

$495.00

12250FBB

250 +/- 5 40 +/- 10 30 % T UV Optical Bandpass Filter 25.4

25250FBB

$595.00

25250FBB

250 +/- 5 40 +/- 10 30 % T UV Optical Bandpass Filter 50.8

50250FBB

$695.00

50250FBB

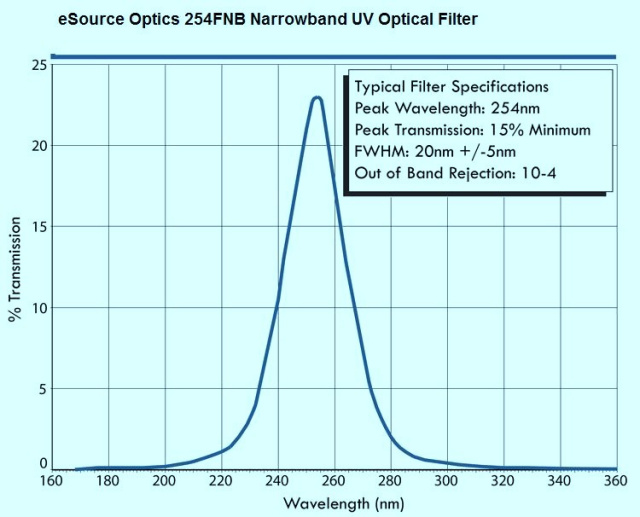

253.7 +/- 2.5 Hg 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7 12254FNB $495.00 12254FNB
253.7 +3/-0 Hg 10 +/-2 12 % T UV Optical Bandpass Filter 25.0 25254FVN $595.00 25254FVN
253.7 +3/-0 Hg 10 +/-2 12 % T UV Optical Bandpass Filter 50.0 50254FVN $735.00 50254FVN
253.7 +/- 2.5 Hg 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25254FNB

$595.00

25254FNB

253.7 +/- 2.5 Hg 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8 50254FNB $695.00 50254FNB
253.7 +/- 2.5 Hg 40 +/- 10 30 % T UV Optical Bandpass Filter 12.7 12254FBB $495.00 12254FBB
253.7 +/- 2.5 Hg 40 +/- 10 30 % T UV Optical Bandpass Filter 25.4 25254FBB $595.00 25254FBB
253.7 +/- 2.5 Hg 40 +/- 10 30 % T UV Optical Bandpass Filter 50.8 50254FBB $695.00 50254FBB
260 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 12.7

12260FNB

$495.00

12260FNB

260 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25260FNB

$595.00

25260FNB

260 +/- 2.5 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50260FNB

$695.00

50260FNB

260 +/- 5 40 +/- 10 30 % T UV Optical Bandpass Filter 12.7

12260FBB

$495.00

12260FBB

260 +/- 5 40 +/- 10 30 % T UV Optical Bandpass Filter 25.4

25260FBB

$595.00

25260FBB

260 +/- 5 40 +/- 10 30 % T UV Optical Bandpass Filter 50.8

50260FBB

$695.00

50260FBB

266 +/- 2.5 Nd:YAG 20 +/- 5 15% T UV Optical Bandpass Filter 12.7

12266FNB

$495.00

12266FNB

265 +3/-0 Nd:YAG 10 +/- 2 12 % T UV Optical Bandpass Filter 25.0 25265FVN $595.00 25265FVN
265 +3/-0 Nd:YAG 10 +/- 2 12 % T UV Optical Bandpass Filter 50.0 50265FVN $735.00 50265FVN
266 +/- 2.5 Nd:YAG 20 +/- 5 15 % T UV Optical Bandpass Filter 25.4

25266FNB

$595.00

25266FNB

266 +/- 2.5 Nd:YAG 20 +/- 5 15 % T UV Optical Bandpass Filter 50.8

50266FNB

$695.00

50266FNB

266 +/- 5 Nd:YAG 40 +/- 10 30 % T UV Optical Bandpass Filter 12.7

12266FBB

$495.00

12266FBB

266 +/- 5 Nd:YAG 40 +/- 10 30 % T UV Optical Bandpass Filter 25.4

25266FBB

$595.00

25266FBB

266 +/- 5 Nd:YAG 40 +/- 10 30 % T UV Optical Bandpass Filter 50.8

50266FBB

$695.00

50266FBB



(Next 270nm to 320nm UV Filters>>>)

Availability: eSource Optics UV Optical Filters are supplied on a per order basis.  Lead-times can vary and are typically within ~4 weeks.


Open-Faced UV Optical Bandpass Filters are fairly soft and must be handled with due care. For added durability and protection from the environment, UV Optical Bandpass Filters can be special ordered with a UV Fused Silica cover window that is edge sealed to the Open-faced filter.  For more information on covered & edge sealed  UV Optical Filters and/or UV filter peak wavelengths not listed below, please contact eSource Optics.

All eSource Optics UV Optical Bandpass Filters are supplied with individual % Transmission Calibration Curves detailing normal incidence UV spectral performance characteristics.  UV Optical Bandpass Filters are mainly used in UV light source applications requiring a narrow spectral bandwidth and a high signal-to-noise ratio.

For more information on UV Optical Bandpass Filters, please refer to our VUV-UV Optical Filter Information Page





         Also see eSource Optics VUV Narrowband Optical Bandpass Filters
