VUV to UV Broadband Spherical Mirrors



eSource Optics standard VUV to UV Broadband Plano-Concave Spherical Mirrors are based on our variety of High Reflectance broadband metallic Aluminum & Magnesium (Al & MgF2) VUV to UV Mirror Coatings, with each coating having high reflectivity optimized at specific VUV to UV wavelengths from ~121.6nm (Lyman Alpha) to 200nm.

All eSource Optics VUV to UV Broadband Plano-Concave Spherical Mirrors offer excellent reflectance properties at the specific VUV through UV wavelengths listed below, with high average broadband reflectance throughout the Visible to NIR.  eSource Optics high Reflectance VUV to UV Broadband Plano-Concave Spherical Mirrors are specifically designed for use in a variety of VUV to UV instrument and research applications including VUV to UV-based analytical instrumentation, DUV spectrophotometers & Ellipsometers.  For the VUV to UV wavelength region, we supply % Reflectance curves with every Lot of mirrors supplied.






                                 Broadband VUV to UV Mirror Coatings

Mirror Coating Part Number         % Reflectance @ 0 degrees A.O.I.



ES #120   VUV Mirror Coating 77-80% R @ 121.6nm view %R curve
ES #160 VUV Mirror Coating 84-86% R @ 160.8nm view %R curve

ES #190  VUV Mirror Coating

>= 88% R @ 190-195nm view %R curve
ES #200  UV Mirror Coating >=88-90% R @ 200nm view %R curve




  VUV to UV Broadband Plano-Concave Spherical Mirrors

  SPHERICAL MIRROR SUBSTRATE SPECIFICATIONS

Material: UV Grade Fused Silica, N-BK7 or equivalent Glass
Diameter (Dia = Ø) Tolerance:   ±0.25mm
Edge Thickness (ET) Tolerance:   ±0.25mm
Surface Irregularity: ~L/4 -L/10 @ 633 nm nominal B-4 Coating
Surface Finish: ~20-10 to 60-40 B-4 Coating typical
Concave ROC Tolerance:   +/- 0.5%
Clear Aperture:   Central 85%
Centration Error: 5 - 10 arc minutes typical
Chamfer:   ~ 0.30mm @ 45 deg. typical

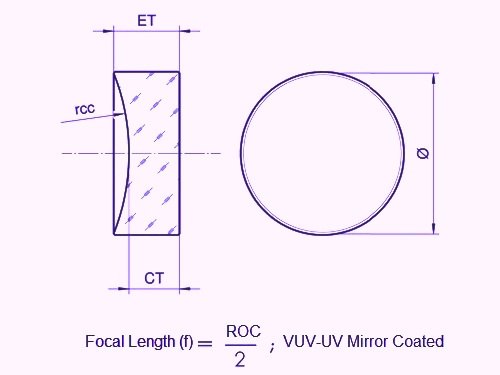

Mirror Focal Length (f) = ROC/2

(All dimensions in mm)






VUV-UV Mirror Coating Type

Radius Of Curvature
ROC (Meter) Concave

   F = ROC/2

Size: 12.7mm Diameter  x ~3.2 - 6.4mm Edge Thick.

Part # Unit Price

Size: 25.4mm Diameter x ~6.4mm Edge Thick.

Part # Unit Price

Size: 50.8mm Diameter x ~6.4 - 12.7mm Edge Thick.

Part # Unit Price






ES #120 VUV to UV Plano-Concave Spherical Mirror

   0.10 Meter ES #120-1264-010-CC / $1395.00 ES #120-2564-010-CC / $1695.00 ES #120-5095-010-CC / $1895.00

ES #120 VUV to UV Plano-Concave Spherical Mirror

   0.20 Meter



ES #120-2564-020-CC / $1695.00

ES #120-5095-020-CC / $1895.00

ES #120 VUV to UV Plano-Concave Spherical Mirror

   0.50 Meter



ES #120-2564-050-CC / $1695.00

ES #120-5095-050-CC / $1895.00

ES #120 VUV to UV Plano-Concave Spherical Mirror

   1.00 Meter



ES #120-2564-100-CC / $1695.00

ES #120-5095-100-CC / $1895.00

ES #120 VUV to UV Plano-Concave Spherical Mirror

   2.00 Meter



ES #120-2564-200-CC / $1695.00

ES #120-5095-200-CC / $1895.00

ES #120 VUV to UV Plano-Concave Spherical Mirror

   1.50 Meter



ES #120-2564-150-CC / $1695.00

ES #120-5095-150-CC / $1895.00







ES #160 VUV to UV Plano-Concave Spherical Mirror

   0.10 Meter ES #160-1264-010-CC$1295.00 ES #160-2564-010-CC / $1495.00 ES #160-5095-010-CC / $1695.00

ES #160 VUV to UV Plano-Concave Spherical Mirror

   0.20 Meter



ES #160-2564-020-CC / $1495.00

ES #160-5095-020-CC / $1695.00

ES #160 VUV to UV Plano-Concave Spherical Mirror

   0.50 Meter



ES #160-2564-050-CC / $1495.00

ES #160-5095-050-CC / $1695.00

ES #160 VUV to UV Plano-Concave Spherical Mirror

   1.00 Meter



ES #160-2564-100-CC / $1495.00

ES #160-5095-100-CC / $1695.00

ES #160 VUV to UV Plano-
Concave Spherical Mirror

   2.00 Meter



ES #160-2564-200-CC / $1495.00

ES #160-5095-200-CC / $1695.00

ES #160 VUV to UV Plano-Concave Spherical Mirror

   1.50 Meter



ES #160-2564-150-CC / $1495.00

ES #160-5095-150-CC / $1695.00






ES #200 VUV to UV Plano-Concave Spherical Mirror

   0.10 Meter ES #200-1264-010-CC $1195.00 ES #200-2564-010-CC / $1395.00 ES #200-5095-010-CC / $1595.00

ES #200 VUV to UV Plano-Concave Spherical Mirror

   0.20 Meter



ES #200-2564-020-CC / $1395.00

ES #200-5095-020-CC / $1595.00

ES #200 VUV to UV Plano-Concave Spherical Mirror

   0.50 Meter



ES #200-2564-050-CC / $1395.00

ES #200-5095-050-CC / $1595.00

ES #200 VUV to UV Plano-Concave Spherical Mirror

   1.00 Meter



ES #200-2564-100-CC / $1395.00

ES #200-5095-100-CC / $1595.00

ES #200 VUV to UV Plano-
Concave Spherical Mirror

   2.00 Meter



ES #200-2564-200-CC / $1395.00

ES #200-5095-200-CC / $1595.00

ES #200 VUV to UV Plano-Concave Spherical Mirror

   1.50 Meter



ES #200-2564-150-CC / $1395.00

ES #200-5095-150-CC / $1595.00


(All Size Dimensions in mm; Other Sizes & Radii are available.....Also see our standard Flat (Plano) VUV to UV Broadband Mirrors)

Availability: eSource Optics VUV to UV Mirrors are supplied on a per order basis.  Lead-times can vary and are typically within ~4 weeks.

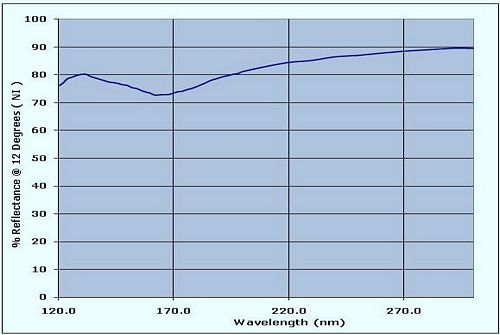

                                                                                                   Typical VUV % Reflectance ES #120 VUV Mirror Coating
                                                                                                                                                    Normal Incidence






All eSource Optics VUV to UV Broadband Plano-Concave Spherical Mirrors are measured from a Flat witness piece on a Vacuum Spectrophotometer system capable of measuring VUV through UV reflectance as short as 120nm. The system is based on a calibrated Model VM-502 0.2 Meter Vacuum Monochromator with VUV enhanced 1200g/mm grating & Deuterium light source for very accurate VUV to UV  wavelength measurements.   All eSource Optics Broadband VUV to UV Spherical Mirrors include a Spherical Plano-Concave UV grade Fused Silica or BK7 substrate over-coated with the VUV to UV Al & MgF2 high reflectance mirror coating.  All VUV to UV Mirror Spherical Plano-Concave substrates are highly polished to a 10-5 to 20-10 scratch & dig surface quality with less than 5 arc minutes centration error.



eSource Optics High Reflectance VUV to UV Broadband Plano-Concave Spherical Mirrors offer superior reflectance properties as specified below, optimized for normal incidence.  eSource Optics standard VUV to UV Broadband Plano-Concave Spherical Mirrors are available per the sizes listed below; or on customer supplied substrates.  Other sizes and Radii are available upon request, so please Contact Us.

eSource Optics also offers standard Flat (Plano) Flat (Plano) VUV to UV Broadband Mirrors in 12.7mm, 25.4mm & 50.8mm Diameter sizes.



                                                                                (Contact us if any questions)
